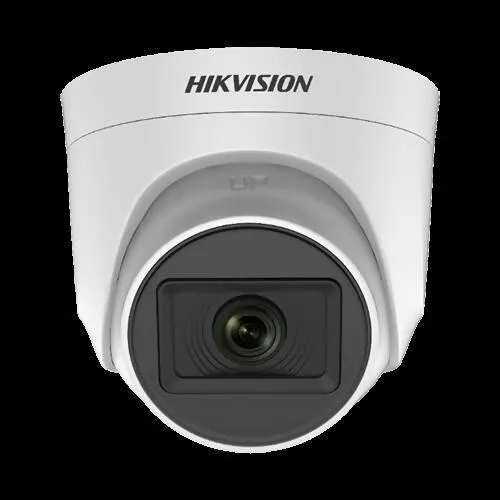

Hikvision 2mp Indoor Exir Fixed Camera, 1 Pcs Exir Leds, 20m Ir, 2mp Turret Camera, Icr, 0.02 Lux/f1.2, 12 Vdc, Smart Ir, Dnr, Support Tvi / Ahd / Cvi / Cvbs Video Signal Output, Ip66.

High Quality Imaging With 2 Mp, 1920 × 1080 Resolution

2.8 Mm, 3.6 Mm Fixed Lens

Up To 20 M Ir Distance For Bright Night Imaging

One Port For Four Switchable Signals (Tvi/ahd/cvi/cvbs)

Product Code: Ds-2ce76dot-exipf

Brand: Hikvision

Camera

Model

Ds-2ce76d0t-exipf

Product Name

2mp Indoor Exir Fixed Turret Camera

Image Sensor

2 Mp Cmos

Signal System

Pal/ntsc

Resolution

1920 (H) × 1080 (V)

Frame Rate

Tvi: 1080p@25fps/30fps

Ahd: 1080p@25fps/30fps

Cvi: 1080p@25fps/30fps

Cvbs: Pal/ntsc

Min. Illumination

0.02 Lux @ (F1.2, Agc On), 0 Lux With Ir

Shutter Time

Pal: 1/25 S To 1/50,000 S;ntsc: 1/30 S To 1/50,000 S

Lens

2.8 Mm, 3.6 Mm Fixed Lens

Field Of View

2.8 Mm, Horizontal Fov: 96.5°, Vertical Fov: 48.9°, Diagonal Fov: 120.5°

3.6 Mm, Horizontal Fov: 76.9°, Vertical Fov: 40.6°, Diagonal Fov: 92.0°

Lens Mount

M12

Day & Night

Ir Cut Filter

Wdr (Wide Dynamic Range)

Digital Wdr

Angle Adjustment

Pan: 0° To 360°, Tilt: 0° To 75°, Rotation: 0° To 360°


Image Mode

Std/high-sat

Agc

Yes

Day/night Mode

Auto/color/bw (Black And White)

White Balance

Auto

Ae (Auto Exposure) Mode

Blc;global;dwdr

Noise Reduction

2d Dnr

Language

English

Function

Sharpness;smart Ir;mirror;brightness

Interface

Video Output

Switchable Tvi/ahd/cvi/cvbs

General

Operating Conditions

-40°c To 60°c (-40°f To 140°f), Humidity: 90% Or Less (Non-condensing)

Power Supply

12 Vdc ± 25%

Consumption

Max. 3.3 W

Material

Plastic

Ir Range

Up To 20 M

Communication

Hikvision-c

Dimension

Φ 84.6 Mm × 78.9 Mm (φ 3.33" × 3.11")

Weight

Approx. 195g (0.43 Lb.)
